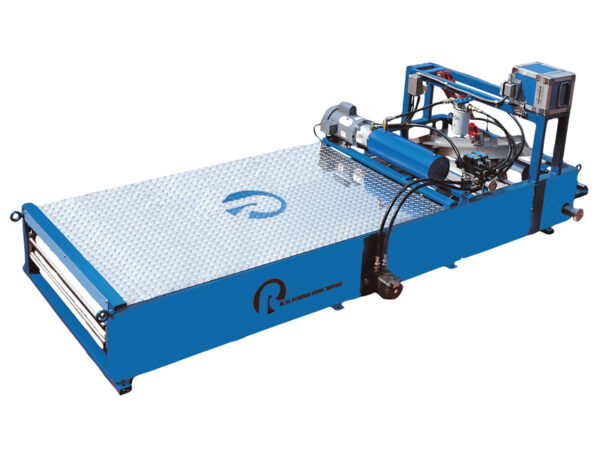

SLP-175 Self-Locking Panel Former with Hydraulic Drive and Shear

SLP – 175 Machine produces one of the most popular commercial metal roof panels in the industry, the 1 ¾” Snap Lock Panel.

The SLP-175 is an adjustable width machine for 12″ to 20″ panels with a 6″ “material use”. Complete with electric – hydraulic drive and front hydraulic scissors shear and a single batch Digital Controller for fully automatic operation. This machine has the option for Stiffening or Striation Ribs.

The machine is powered with a 5 HP 220 Volt 1 or 3 Phase power unit for 22 – 24 gauge Painted Steel – .032″ Painted Aluminum capacity.

Add to quote
Category:
Description

Standard Features

  • Produces 1 ¾” Snap Lock Panel
  • 12” to 20” panel width
  • Hydraulic drive
  • Front hydraulic powered scissors shear
  • 416 grade stainless steel forming rolls
  • 303 grade 1.25” diameter stainless steel shafts with sealed bearings
  • 40 – 50 FPM speed
  • Siemens Digital Controller +/- 1 /10” accuracy
  • 6” Material Use



Capacities

  • 22 – 26 ga. Painted Steel
  • .032” Painted Aluminum
  • 12 – 20 oz. Copper

Options & Accessories

  • 3000 Lbs. capacity Decoiler to hold your coil stock
  • Machine Stand with Leveler Pads for shop use
  • Stiffening Ribs – Two (2) in either V, Flat, or Pencil Rib design
  • Bolt-On Striation Rib Attachment
  • Hot Melt Caulk System 220 Volt 1 Phase



Power

  • Electric – Hydraulic 5 HP 5 GPM 220 Volt 1 or 3 Phase with dual 28 cu in Drive Motors # 40 Chain & Sprocket / Spur Gear Drive

Standard Profile

Optional Profiles

Stiffening Ribs

Striation Ribs
