VS-150 Standing Seam Panformer with Hydraulic Drive and Shear

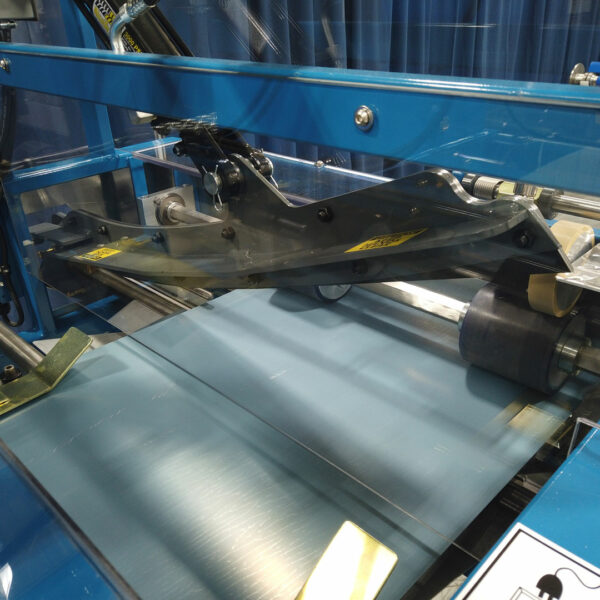

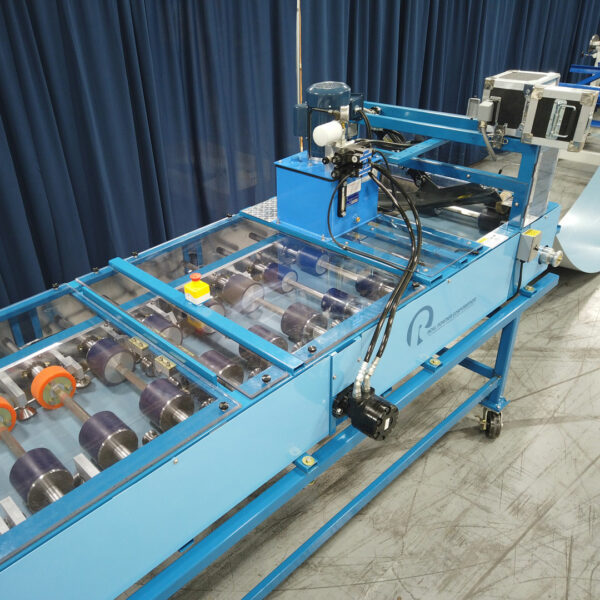

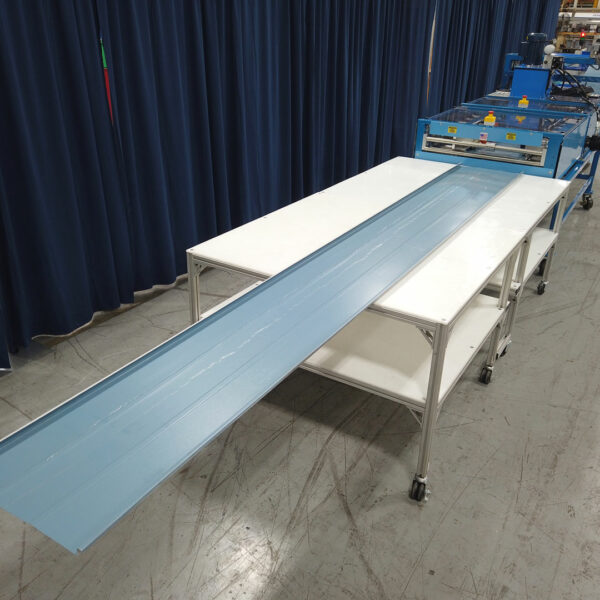

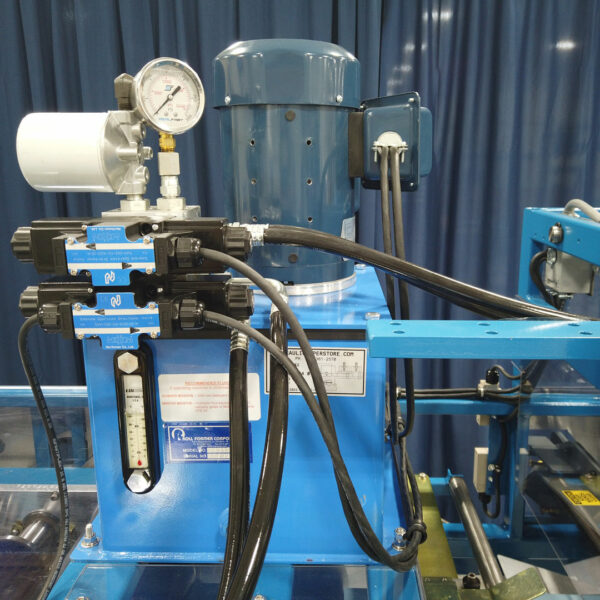

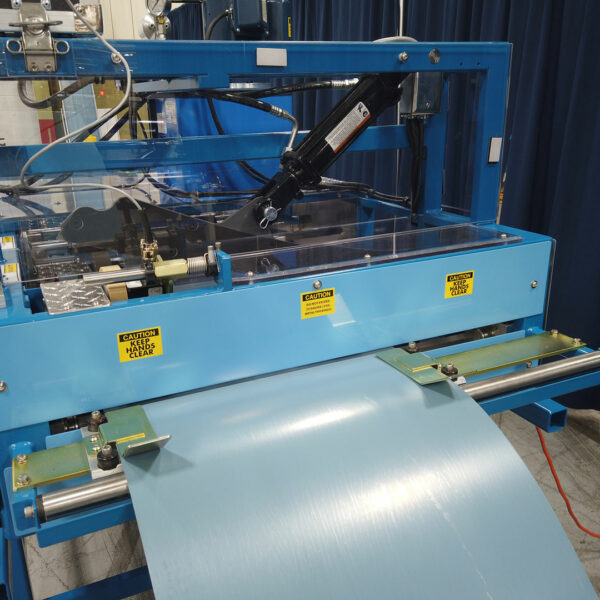

The VS-150 machine is equipped with hydraulic drive and front hydraulic scissors shear, 110 volt – 1 phase power, 40 FPM speed. It produces the 1″ and 1 1/2″ Standing Seam profile and “U-Panels in the base model machine, adjustable width panels of 9″ to 24”.

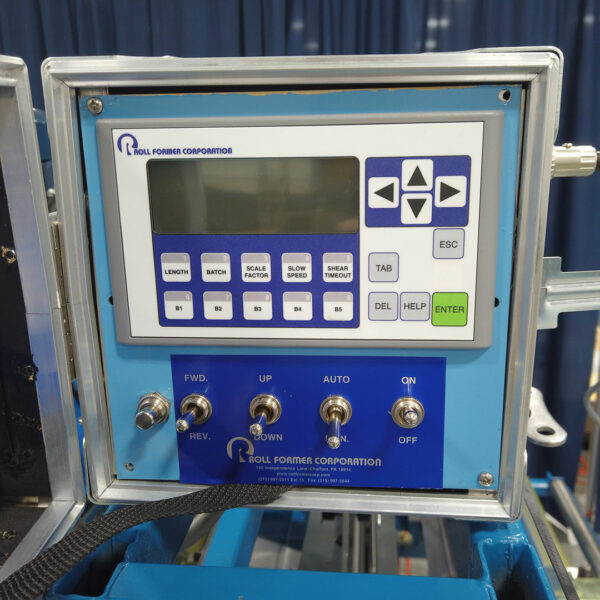

The VS-150 is also a “Multi-Profile” capable piece of machinery forming 7 different profiles in total. From Snap Lock styles to true Board and Batten and Bermuda Roof profiles. The versatility is built into the design of the machine but most importantly the changeover time is anywhere from 15 minutes to 1 hour. You can purchase these optional dies at anytime! A Digital Controller for fully automatic operation is also available and highly recommended for increased production.

Add to quote
This product is already in quote request list
VIEW QUOTE LIST
Category: Roof Panel Machines and Panformers
Share:
  • Description
Description

Product Video

Standard Features

  • Hydraulic drive and shear
  • Adjustable width – 9″- 24″ panels
  • Quick and Easy Profile Changes
  • 40 FPM
  • Portable



Power

  • 120V AC



Capacities

  • 24g-26g Painted Steel
  • .032″ Aluminum
  • 12-20 oz. Copper
  • 22 GA. Painted steel (for optional mechanical lock profile only)



Options & Accessories

  • Digital Controller
  • 1″-1½” Snap Lock Dies
  • SOP-15 Dies
  • 1″-1½” Bermuda Dies
  • Batten Pan Dies
  • Batten Cap Dies
  • Plus 50 Attachment
  • SSX Seamer (24 ga. Steel – .032″ Alum.)
  • SSX – HD Seamer (22 ga Steel – .040″ Alum.)
    *Slitting Knife Option
  • SSX Slitting Knives
  • 3,000 lbs. x 30″ Decoiler
  • Quick Release Rib Rolls
  • Striation Rib Attachment

Optional Profiles

Snaplock

Roll Former VS-150 Snap Lock Optional Profile

SOP-15
ASTM-E1592 Tested

Roll Former VS-150 SOP Optional Profile

Batten Pan

Roll Former VS-150 Batten Pan Optional Profile

Batten Cap

Roll Former VS-150 Batten Cap Optional Profile

Bermuda Panel

Roll Former VS-150 Bermuda Optional Profile

Mechanical Lock w/Striation

Roll Former VS-150 Double Lock with Striation Optional Profile

Mechanical lock w/Clip Relief

Roll Former VS-150 Double Lock with Clip Relief Optional Profile

Mechanical Lock w/Plus 50

Roll Former VS-150 Double Lock with Plus 50 Optional Profile

T-Cap

Roll Former VS-150 T-CAP Optional Profile

(click diagram thumbnails to enlarge dimensions)
